Product Information Video

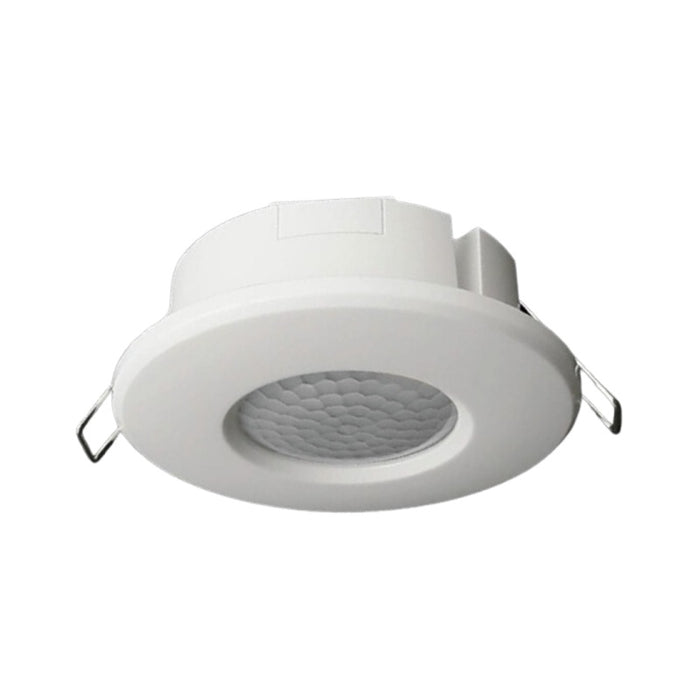

The PIXIE Smart PIR Sensor Indoor Ceiling Mount Is A Traditional 3-Wire, 360° Motion Sensor With PE Sensing Capabilities, And Acts As A PIXIE Master Device With Full Device Control, Grouping And Scene Capability As Well As 24 Hour 7 Days Scheduling Of Any Of The 3 Modes, Built In.

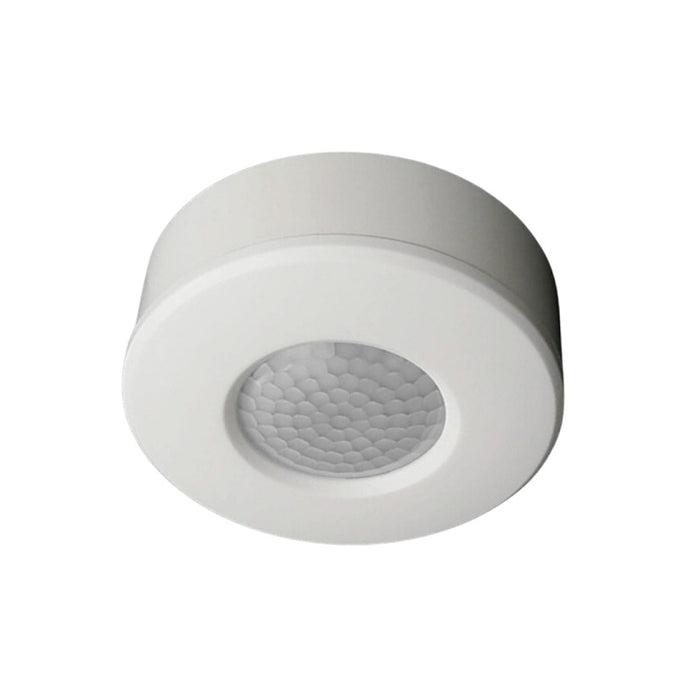

The Sensor Comes Complete With A Surface Mounting Block And Springs For Flush Mount Arrangements. LED Indicator Informs The User Of The Current Operating Mode For Clarity And When Paired With A PIXIE Multifunction Controller, Users Are Automatically Provided 3 Press Functions – Single = Auto; Double = Override On; Triple = Disable.
- 3 Operating Modes: AUTO MODE | OVERRIDE ONE MODE | DISABLED MODE

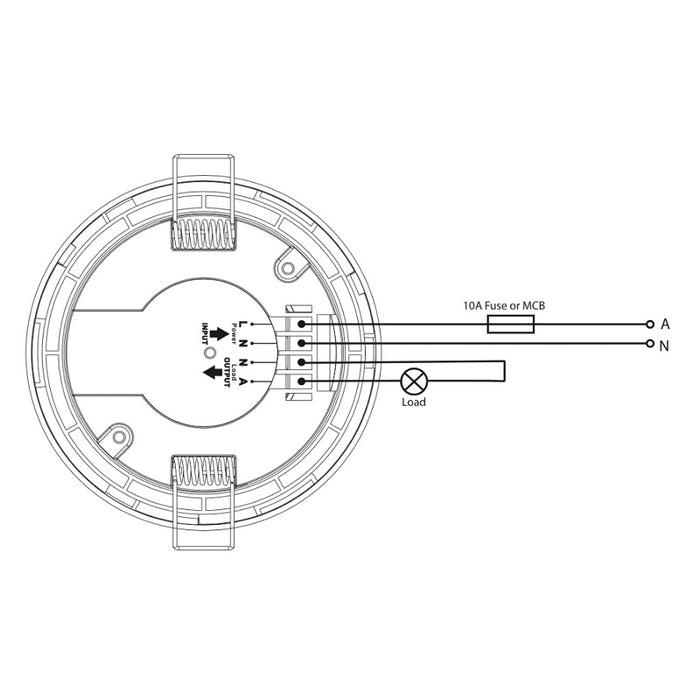

- Simple 3-Wire Installation - Neutral Required.
- No Minimum Load Requirement
- Max Loads: 2800W (Incandescent/Resistive Load); 400VA (LED/Capacitive Load); 100VA (Fan Motor/Inductive Load)
- Detection Range: Max. 8 Metres @24°C
- Ideal Mounting Height 2-2.4 Metres
- Hold Time: 10 Seconds To 30 Minutes
