The Clipsal Solis™ Collection brings your projects to the next level with its blend of modern minimalism and advanced features. Perfect for high-end builds, this range redefines luxury and performance.
The optimum range Solis™ is available in two premium finishes: Matte White and Matte Black. It has a flush push-button and ultra slim cover (4.5mm) for easy installation while maintaining aesthetics.

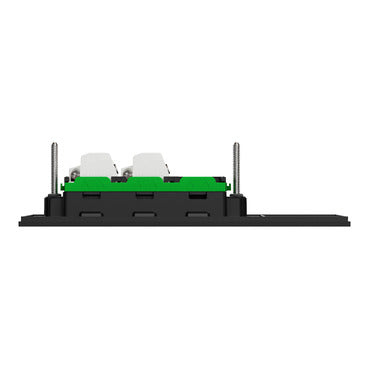

1042PA-ZB Clipsal Solis 2 Gang Complete Switch
This product can be installed into standard wall brackets.
Unsure which bracket is required? Solis mounting compatibility chart can be found here.
- Number of gangs 2 gangs
- [Ue] rated operational voltage 230/240 V
- Network type AC
- Network frequency 50 Hz
- Rated current 20 A/16 AX
- Control type Push-button
- Connections - terminals Screw terminals
- Installation Type Flush
- Number Of Switches 2
- Material Plastic
- Installation direction Horizontal
- Surface treatment Painted
- Load type LEDi lamp 0...250 W 20 A/16 AX
- Terminals Capacity 4 x 1.5...3 x 2.5 mm²
- Screwdriver shape Philips No 2
- Square drive no 1 (SQ1)
- Wire stripping length 10 mm
- Mounting Type Screw
- Cover Thickness 4.5 mm
- Mounting Centers 84 mm
- Cut-out dimensions 93 x 50 mm
- Product certifications RCM
- Surface finish Matt
- Height 74 mm
- Width 148 mm
- Depth 45.5 mm
- Embedding depth 41 mm
- Motor M-rating AS3133 M80
- Switch function 1-pole 1/2-way
If you are unsure what to order, then we are happy to help. Please call us during business hours.
Clipsal Solis is backed by a 10 year mechanical and a 7 year electronic warranty.
