Product Information Video
The Clipsal Solis™ Collection brings your projects to the next level with its blend of modern minimalism and advanced features. Perfect for high-end builds, this range redefines luxury and performance.
The optimum range Solis™ is available in two premium finishes: Matte White and Matte Black. It has a flush push-button and ultra slim cover (4.5mm) for easy installation while maintaining aesthetics.

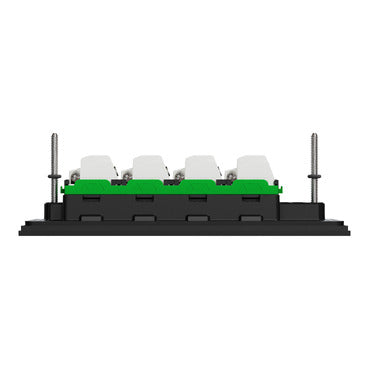

1044PA-ZB Clipsal Solis 4 Gang Complete Switch
This product will need to be installed into it owns bracket and will not fit onto any conventional bracket. Mounting accessories can be found here.
Unsure which bracket is required? Solis mounting compatibility chart can be found here.
- Number of gangs 4 gangs
- [Ue] rated operational voltage 230/240 V
- Network type AC
- Network frequency 50 Hz
- Rated current 20 A/16 AX
- Control type Push-button
- Connections - terminals Screw terminals
- Installation Type Flush
- Number Of Switches 4
- Material Plastic
- Installation direction Horizontal
- Surface treatment Painted
- Load type LEDi lamp 0...250 W 20 A/16 AX
- Terminals Capacity 4 x 1.5...3 x 2.5 mm²
- Screwdriver shape Philips No 2
- Square drive no 1 (SQ1)
- Wire stripping length 10 mm
- Mounting Type Screw
- Cover Thickness 4.5 mm
- Mounting Centers 120 mm
- Cut-out dimensions 130 x 50 mm
- Product certifications RCM
- Surface finish Matt
- Height 74 mm
- Width 148 mm
- Depth 45.5 mm
- Embedding depth 41 mm
- Motor M-rating AS3133 M80
- Switch function 1-pole 1/2-way
If you are unsure what to order, then we are happy to help. Please call us during business hours.
Clipsal Solis is backed by a 10 year mechanical and a 7 year electronic warranty.
